Oakley Industrial Machinery offers extensive expertise in coil-pin welding and provides tailored solutions for heating element assembly, ranging from manual to semi-automatic and fully automatic devices depending on production requirements.

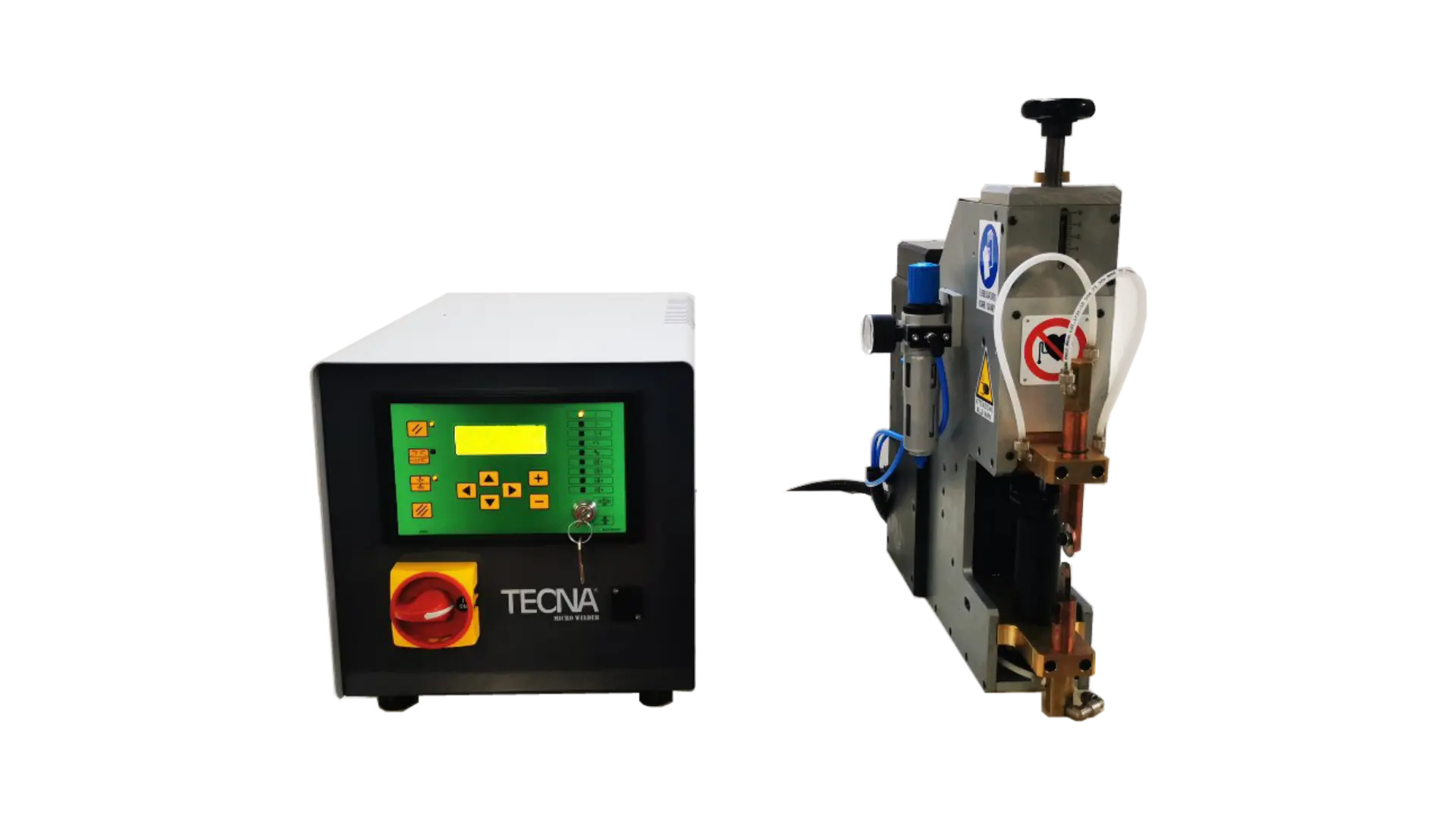

The manual spot welder is designed specifically for welding coils to terminal pins, making it ideal for small-volume production batches. Operating fully manually, weld quality depends on the operator; however, the machine is equipped with a precise electronic welding control to ensure accurate adjustment of weld parameters for different wire types and diameters.
The tangible benefits that make a difference

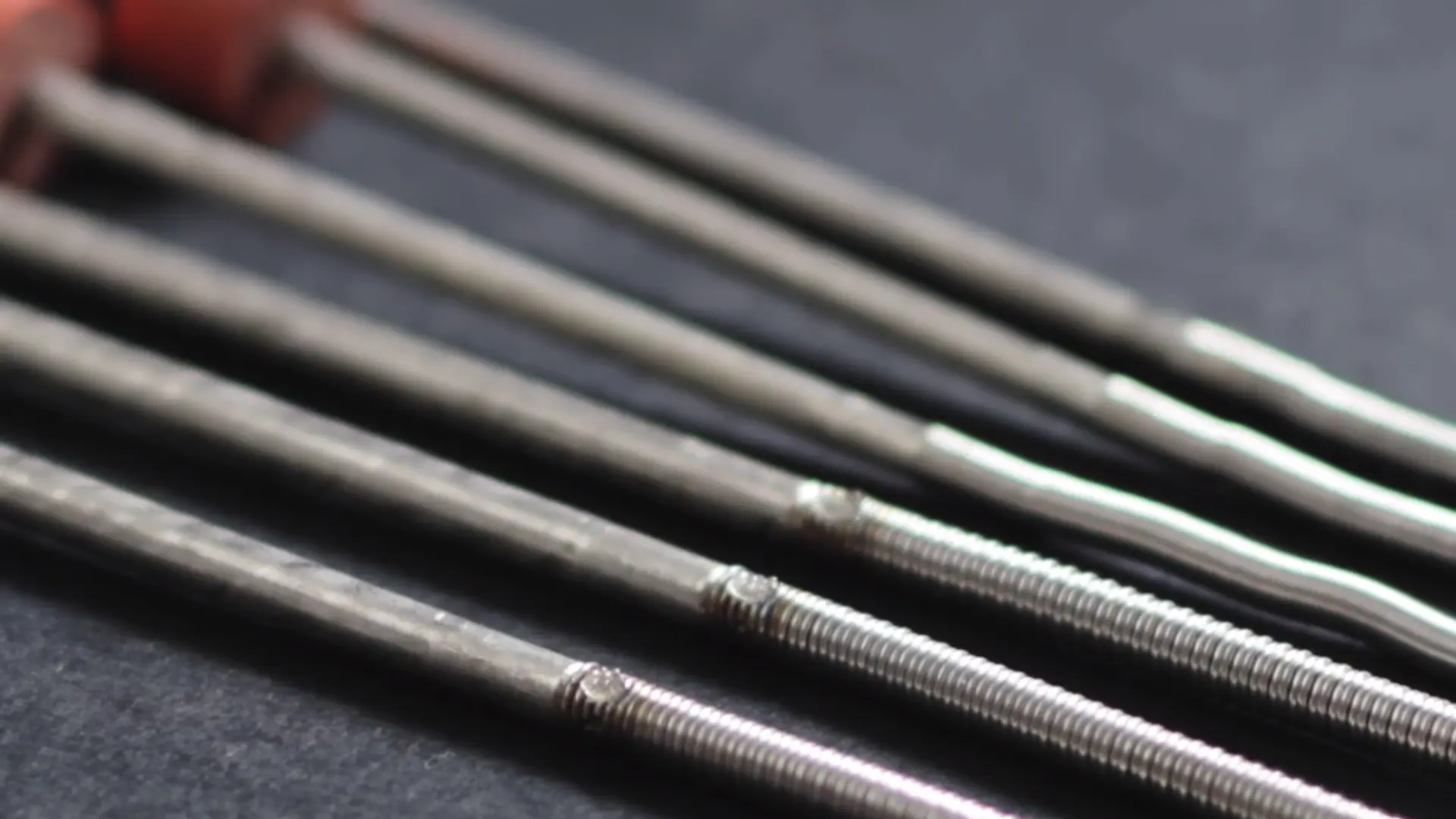

Ensures precise and consistent welds.
Supports up to 300 welding programs, each configurable with 32 parameters.
Perfect for low-volume or prototype runs.
Discover all the details of the machine

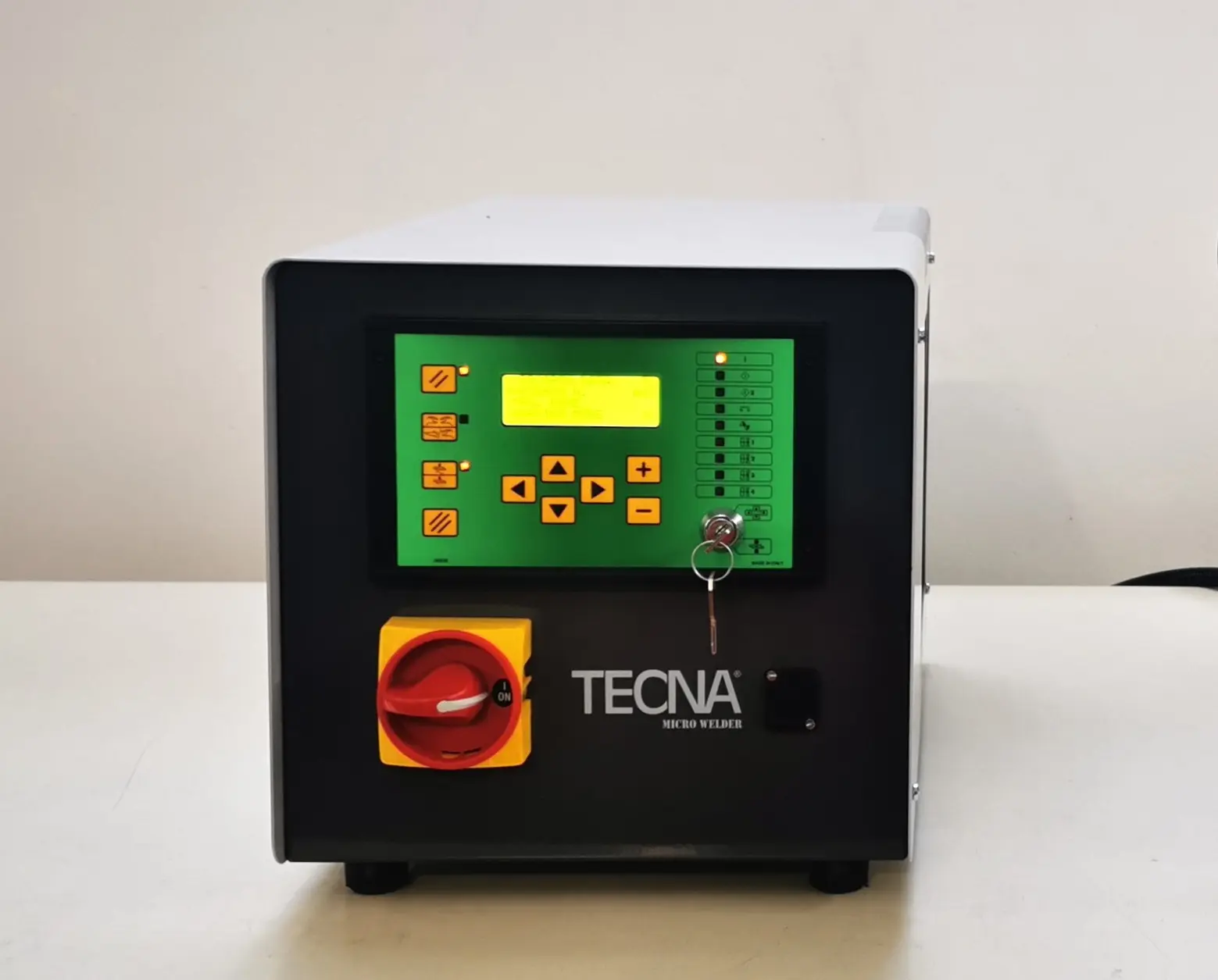

ELECTRONIC CONTROL SYSTEM Controlled diode power group (SCR) and transformer built with silicon steel laminations, rated at 15 KVA, single-phase, fully water-cooled and impregnated in epoxy resin.

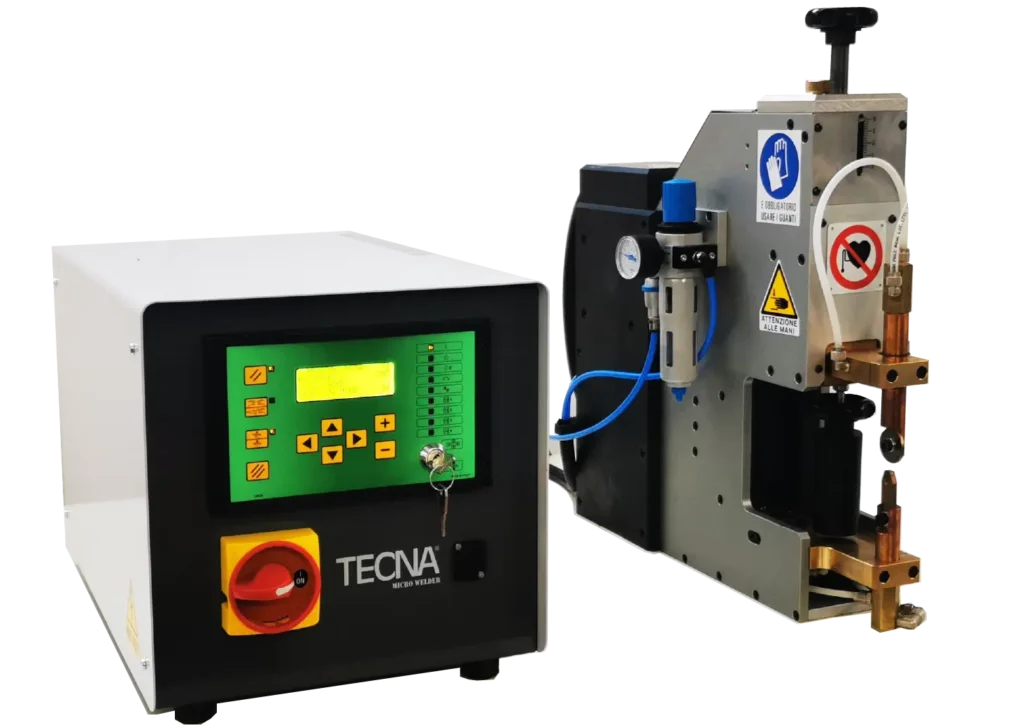

DIE-CAST ALUMINUM FRAME housing the complete welding group.
ELECTRONIC CONTROL — up to 300 welding programs with up to 32 programmable parameters per program. The system includes:
2 WATER-COOLED ELECTRODE HOLDER ARMS
CCD COPPER ELECTRODES
Discover all the details of the machine
Cycle time | 3 - 4 sec. |
Terminal pin length | 45 - 200 mm |
Terminal pin diameter | 2,5 - 4 mm |
Coil length | 50 - 1200 mm |
Coil outer diameter | 1,8 - 4 mm |
Power supply voltage | To be defined (V) |
Installed power | 15 kVA |
Pneumatic supply | 6 Ate |
Cooling water | 2 l/min |
Welding unit | To be defined |
Dimensions | 2325 x 1245 x 1770 mm (L x W x H) |
Weight | 400 k |
Machine setup time | 2 - 3 min. |
